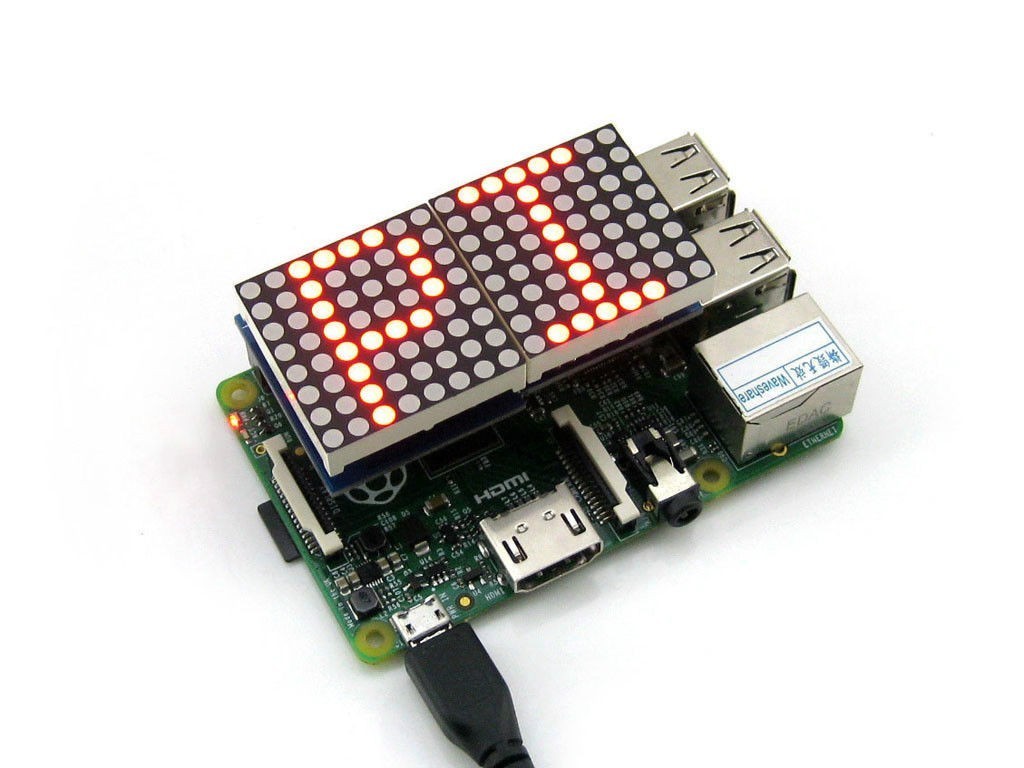

Modul LED matice pro Raspberry, potřebujete přečíst měřenou hodnotu na delší vzdálenost? Tento světelný shield umožňuje perfektní kontrastní čtení i na dlouhé vzdálenosti.
Specifikace:
Driver: MAX7219
Typ matice: 8 x 8 společná katoda
Barva LED: červená
Rozměry: 64,3 x 35 x 26,5 mm
Mapování pinů
PIN NO.
SYMBOL
DESCRIPTION
1, 17
3.3V
power positive (3.3V input)
2, 4
5V
power positive (5V input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 21, 22, 26
NC
NC
6, 9, 14, 20, 25
GND
ground
19
MOSI
data input
23
SCK
clock
24
CE0
chip selection
