PCF8591 AD/DA převodník pro Arduino

PCF8591 provozní napětí v rozsahu 2,5 V až 6V
Komunikace přes I2C 4 analogové vstupy programovatelné jako single-ended nebo diferenciální vstupy Automatický inkrementální výběr kanálu
Analogové napětí v rozsahu od VSS do VDD 8-bit aproximační A / D převodník Analogový D / A PŘEVODNÍK
Obsah balení:
1 x   PCF8591 AD/DA převodník pro Arduino
Datasheet:
A module chip using PCF89512. module supports external voltage input capture (input voltage range 0-5v)3. Three modules integrated photoresistor acquisition environment through the AD intensity accurate numerical4. modules integrated thermistor, can capture the precise value of the ambient temperature through the AD5. The five-module integrated 1 channel 0-5V voltage input acquisition (blue potentiometer to adjust the input voltage)6. modules with power indicator light (on the module after power indicator lights)7. modules with the DA output indicator light board DA output indicator module DA output interface voltage reaches a certain value, the voltage the greater the light brightness is more obvious;8. module PCB size: 3.6cm * 2.3cm9. standard double-sided, plate thickness 1.6mm, the layout is nice, surrounded by the through-hole, aperture: 3mm, convenient fixed
The module interface:

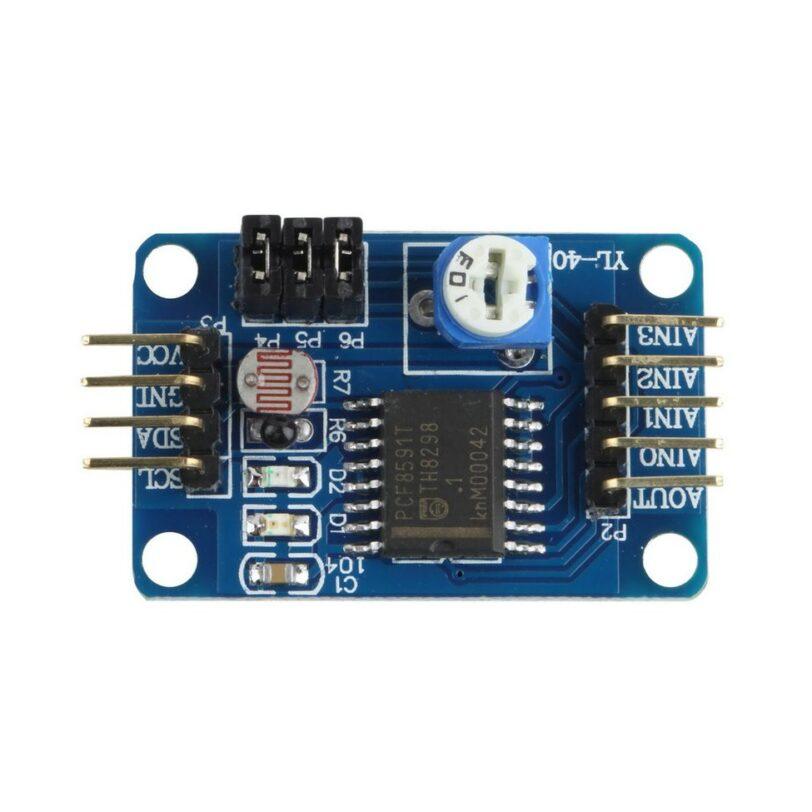

The module’s left and right, respectively, the external expansion of 2-way pin interface, respectively, as follows:Output interface of the left the AOUT chip DAThe AINO chip analog input interface.AIN1 chip analog input interfaceAIN2 chip analog input interfaceAIN3 chip analog input interfaceThe right side of the SCL IIC clock interface to access the microcontroller IO portThe SDA IIC digital interface connected microcontroller IO portGND module to an externalVCC power supply interface external 3.3v-5v
Module red jumper instructions for useModule three red short circuit cap, respectively, the role are as follows:P4 connected to the P4 jumper, select thermistor access circuitP5 connected to P5 jumper to select the photoresistor access circuitP6 connected to the P6 jumper, to select 0-5V adjustable voltage access circuit
