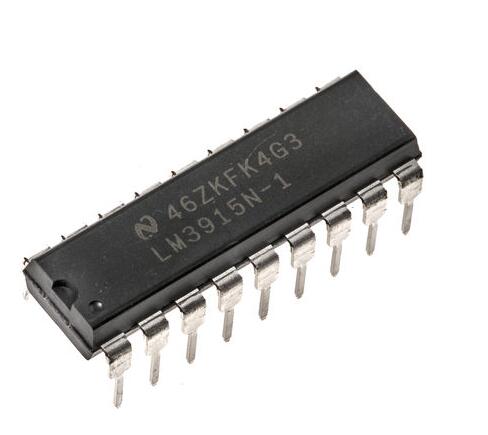

LM3915N-1 LED sloupec IO

Populární sloupcový budič LED diod pro audio a jiné aplikace.
Široké napájecí napětí 3 – 25V DC.
Specifikace:
3 dB/step, 30 dB range
Drives LEDs, LCDs, or vacuum fluorescents
Bar or dot display mode externally selectable by user
Expandable to displays of 90 dB n Internal voltage reference from 1.2V to 12V
Operates with single supply of 3V to 25V
Inputs operate down to ground
Output current programmable from 1 mA to 30 mA
Input withstands ±35V without damage or false outputs
Outputs are current regulated, open collectors
Directly drives TTL or CMOS n The internal 10-step divider is floating and can be referenced to a wide range of voltages
